Acura TSX 2009 Windshield Replacement

This is a slide show of a front windshield replacement on a Acura TSX 2009 with an Acoustic Interlayer.

Read more below

Acura TSX 2009 Windshield Replace - Crack Windshield

Acura TSX 2009 Windshield Replace - Crack in Windshield

Acura TSX 2009 Windshield Replace - Rear View

Acura TSX 2009 Windshield Replace - View Under Hood

Acura TSX 2009 Windshield Replace - Close-up of Wipers

Acura TSX 2009 Windshield Replace - Wiper Hose Connector

Acura TSX 2009 Windshield Replace - Notes About Wipers Hose

Acura TSX 2009 Windshield Replace - View of Cowl Clips

Acura TSX 2009 Windshield Replace - Cowl Clip

Acura TSX 2009 Windshield Replace - Blue Cowl Clip

Acura TSX 2009 Windshield Replace - Engine Covers and Cowl

Acura TSX 2009 Windshield Replace - View After Cowl is Removed

Acura TSX 2009 Windshield Replace - View of Dirt Line Under Cowl

Acura TSX 2009 Windshield Replace - View of A-pillar Molding

Acura TSX 2009 Windshield Replace - Bottom A-pillar Clip

Acura TSX 2009 Windshield Replace - Metal Retainer for A-pillar Molding

Acura TSX 2009 Windshield Replace - A-pillar Molding Break During Removal and Must Be Replaced

Acura TSX 2009 Windshield Replace - Auto Glass Removed

Acura TSX 2009 Windshield Replace - Close-up View of Dirty Pinchweld

Acura TSX 2009 Windshield Replace - Stubby Knife

Acura TSX 2009 Windshield Replace - Happy Customer

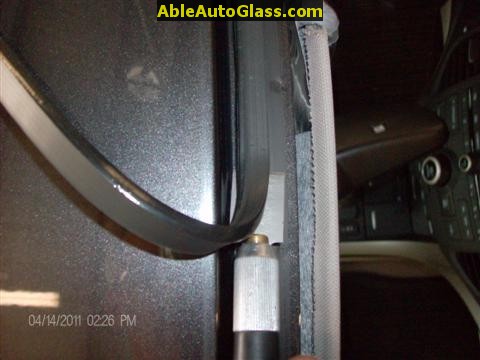

Acura TSX 2009 Windshield Replace - Use of Stubby Knife to Reduce Scratches and Trim Old Seal Down to 2-5mm Thin

Acura TSX 2009 Windshield Replace - All Trimmed

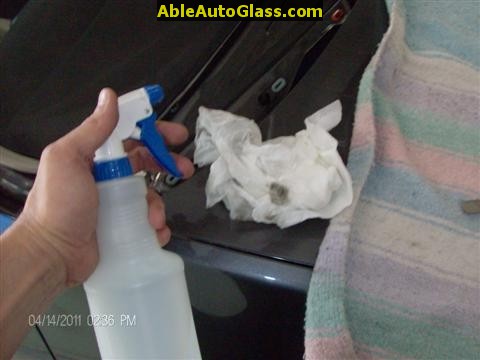

Acura TSX 2009 Windshield Replace - Cleaned Pinchweld with Filtered Water

Acura TSX 2009 Windshield Replace - Pinchweld All Cleaned

Acura TSX 2009 Windshield Replace - Prime Pinchweld to Prevent Rust

Acura TSX 2009 Windshield Replace - View of Primer Used

Acura TSX 2009 Windshield Replace - View of Car Prior to Setting Windshield

Acura TSX 2009 Windshield Replace - View of Passenger Side After Primming

Acura TSX 2009 Windshield Replace - OETech Top Molding MW0299 BLT

Acura TSX 2009 Windshield Replace - Removing 3M Adhesive Tape Cover for Molding

Acura TSX 2009 Windshield Replace - Auto Glass Ready for Installation

Acura TSX 2009 Windshield Replace - Measuring Height of New Seal

Acura TSX 2009 Windshield Replace - Tip of Nozzle for Seal to Have Triangle Bead

Acura TSX 2009 Windshield Replace - Applying Adco Titan Pro 1 Onto Windshield

Acura TSX 2009 Windshield Replace- Applied Urethane to Glass with Only 1 Joint

Acura TSX 2009 Windshield Replace - We Use 2 People with Suction Cups for Better Placement

Acura TSX 2009 Windshield Replace - Acoustic Interlayer

Acura TSX 2009 Windshield Replace - Acura Service Bulletin for TSX

Acura TSX 2009 Windshield Replace - Corrective Action - A-pillar Moldings Must Be Replaced

Acura TSX 2009 Windshield Replace - New Dealer Painted to Match A-pillar Molding

Acura TSX 2009 Windshield Replace - Close-up View of New Dealer A-pillar Molding

Acura TSX 2009 Windshield Replace - Close-up View of New Molding

Acura TSX 2009 Windshield Replace- Close-up View of Dealer Molding

Acura TSX 2009 Windshield Replace - Dealer Molding is Made of Plactic and Breaks During Removal Must Be Replaced

Acura TSX 2009 Windshield Replace - Notes to Installer

Acura TSX 2009 Windshield Replace - Bend Retainer Clip Away from Windshield

Acura TSX 2009 Windshield Replace - All Complete

Acura TSX 2009 Windshield Replace - Ready to Drive

Slideshow In Flash by VisualSlideshow.com v1.5

The A-pillar Molding must be replaced when windshield is removed. The A-pillar clips are made onto the molding a break very easily. The cost at the time this windshield was replaced was around $117 each. We were told at the dealer these are always replaced. I have included a copy of the Acura Service Bulletin pertaining to the replacement of the A-pillar Molding and Retainers. If you have any questions about this replacement please call or E-mail.
